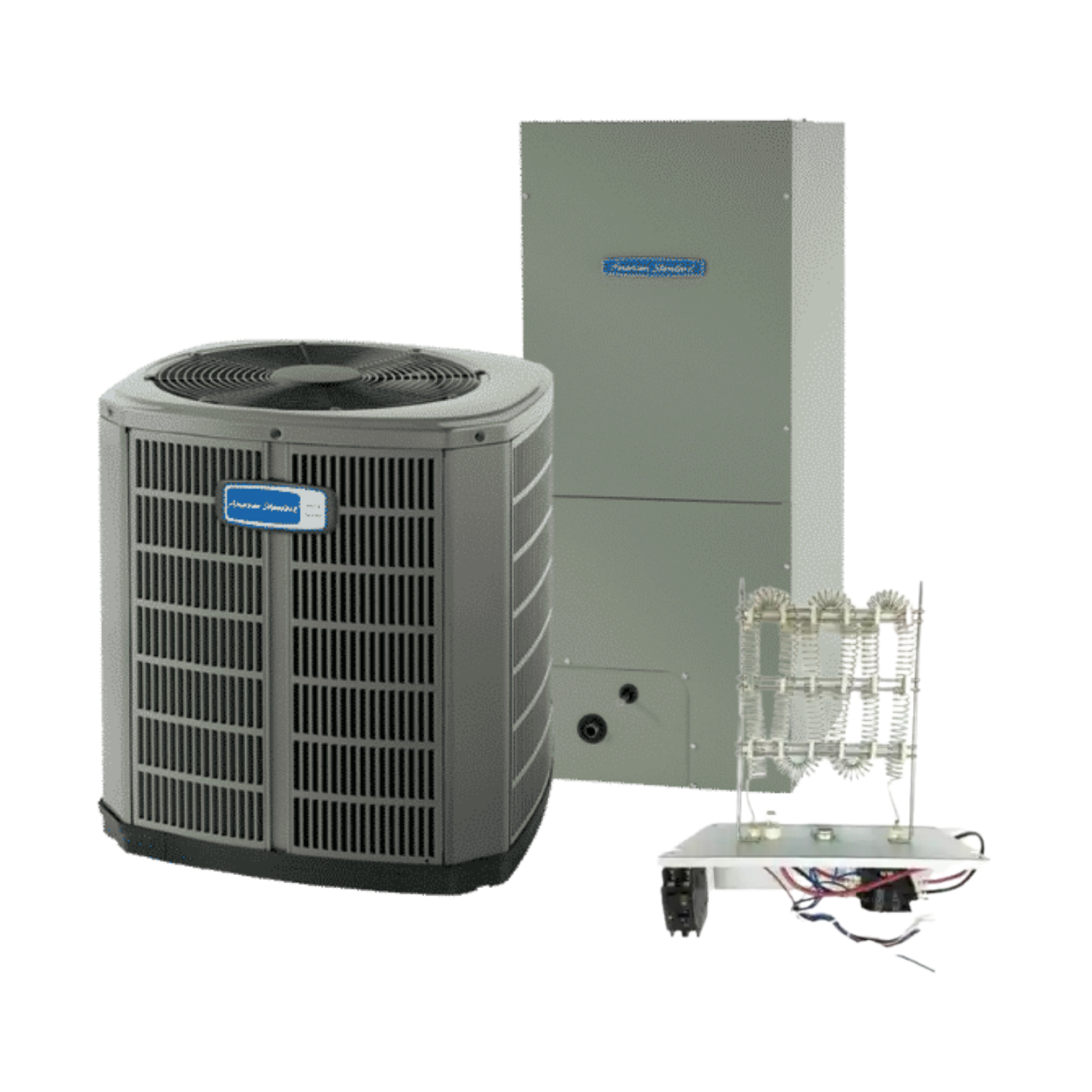

American Standard 5A6H4 - 4 Ton - 14.3 SEER2/7.5 HSPF2 Heat Pump with 5TEM4D06AC4 Air Handler - Single-Stage - Heat Pump System - with install

American Standard, offered by Plano Heat and Air, is a trusted name in home comfort, delivering high-performance HVAC systems that combine efficiency, reliability, and innovation. Focused on energy savings and durability, American Standard products meet top standards in residential heating and cooling. Whether upgrading or installing new, American Standard provides advanced solutions to keep your home comfortable year-round.

What's Included:

• American Standard 5A6H4048A Condenser: The American Standard 5A6H4 is a single-stage Silver 14 split-system heat pump built around a SpineFin outdoor coil and a durable scroll compressor, delivering up to 15.2 SEER2 cooling and 8.1 HSPF2 heating on low-GWP R-454B refrigerant, available in 1.5-5 ton (018-060) capacities.
• American Standard 5TEM4D06AC4 Air Handler: The American Standard 5TEM is a multi-position, convertible electric fan-coil air handler for use with split heat pump or AC condensers, housing an ECM or PSC blower and multi-circuit electric heat kit provisions; the 5TEM4 sub-series covers 1.5-5 ton fixed-speed models while 5TEM6 adds variable-speed operation.
• BAYHTR Supplementary Electric Heat Kit BAYHTR1523BR Heat Kit: BAYHTR accessory heat kits are factory-engineered supplementary electric heaters that field-install into American Standard 5TEM/TEM-series air handlers, available in multiple kW stages (approximately 5-23 kW across this model range) at 208/240V to provide backup or auxiliary electric resistance heat alongside a heat pump.

Includes licensed and insured HVAC installation by professionals, along with the Install Kit for a complete setup.

Professional Installation:

• Removal & haul-off of existing equipment
• Installation of new equipment and all included parts
• Refrigerant line connection, evacuation & charge to OEM spec
• Full system start-up, airflow check & operational testing
• Permit pulled and permit fees paid with the local jurisdiction
• Final inspection and job-site clean-up
• Performed by a licensed, insured HVAC contractor

Heat Pump Kit (Condenser + Air Handler & Heat Kit)

• Electrical & mounting disconnect, A/C whip, condenser pad
• Refrigerant line filter drier, locking caps, ArmaFlex insulation
• Electric heat kit factory-matched heat strip, field-installed and wired to OEM spec
• Drainage & PVC P-trap, full PVC fittings kit (couplings, elbows, tee, adapters)

Not Included:

This listing covers the equipment and standard installation scope above. The following items are not included unless specifically listed on your written invoice or estimate:

• Electrical panel upgrades or new breakers beyond the conventional disconnect
• Ductwork modifications, repairs, replacement, or new runs
• New refrigerant line set (existing line set is reused when in good condition)
• Condenser pad re-pour, raised platform, or hurricane tie-downs (standard composite pad is included)
• Condenser relocation to a new exterior position
• Crane or rooftop rigging for difficult equipment access
• Gas line extension, re-routing, or new gas line installation
• Condensate drain line rework beyond the immediate connection at the unit
• Thermostat upgrades (standard thermostat reuse only)
• Asbestos abatement, mold remediation, or hazardous material handling
• Carpentry, drywall, paint, or flooring repair after installation

If any of the above are needed for your home, your technician will note it on your estimate before work begins.
