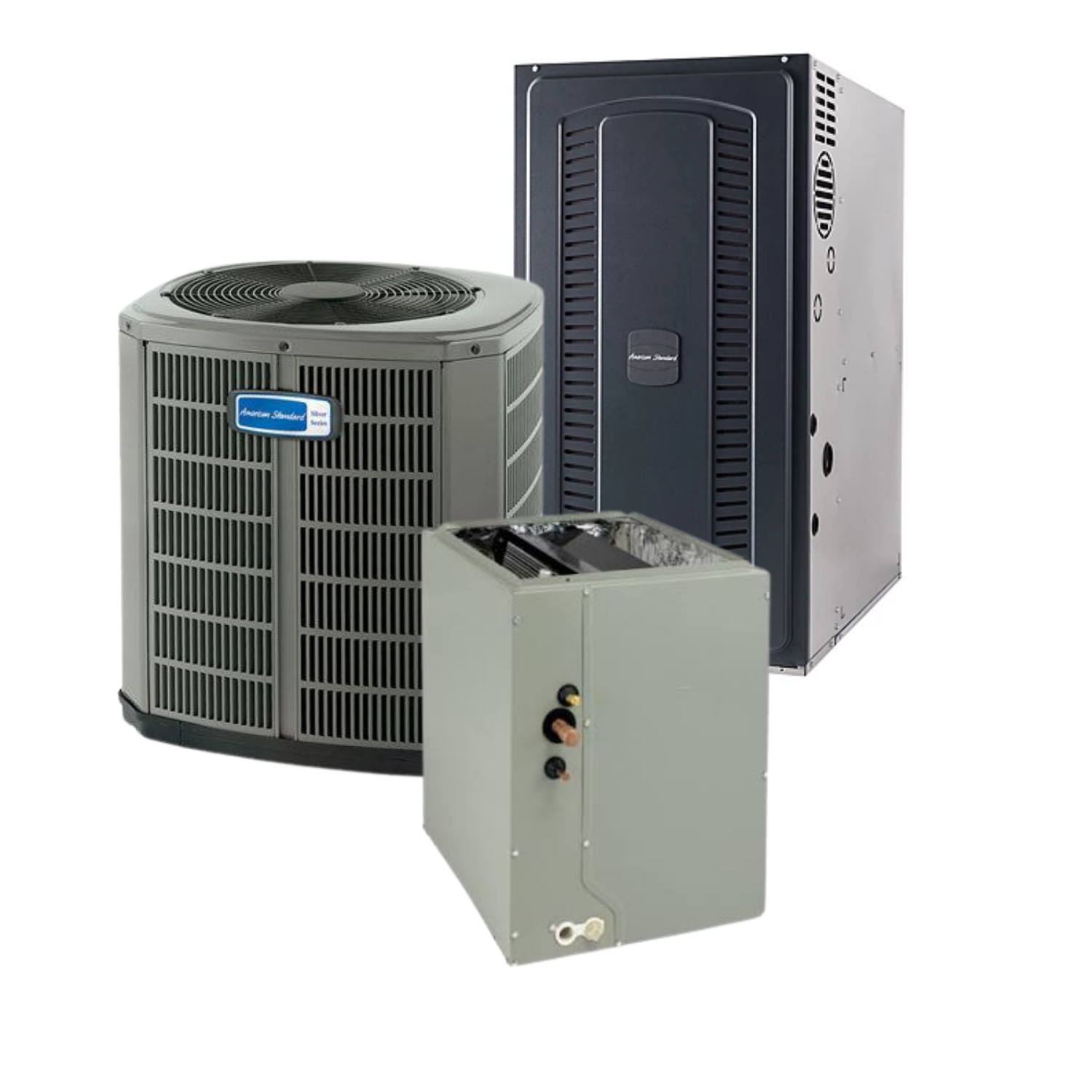

American Standard 5A7A4 - 2 Ton - 14.3 SEER2 AC with S8B1 - Single-Stage - 80% AFUE Furnace - Multi-Position Coil - Gas System - with install

American Standard, offered by Plano Heat and Air, is a trusted name in home comfort, delivering high-performance HVAC systems that combine efficiency, reliability, and innovation. Focused on energy savings and durability, American Standard products meet top standards in residential heating and cooling. Whether upgrading or installing new, American Standard provides advanced solutions to keep your home comfortable year-round.

What's Included:

• American Standard 5A7A4024A Condenser: The American Standard 5A7A4 is a single-stage Silver 14 split-system air conditioner with a SpineFin outdoor coil and scroll compressor, rated up to 15.2 SEER2 on low-GWP R-454B refrigerant, spanning 1.5-5 ton (018-060) capacities.
• American Standard S8B1B040M2PS Furnace: The American Standard S8B1 is an 80% AFUE single-stage gas furnace with an aluminized-steel tubular heat exchanger, constant-torque/ECM blower motor, and hot-surface ignition, offered in upflow/downflow/horizontal configurations from 40,000 to 120,000 BTU input. It uses the standard 17.5 in. wide cabinet.
• 5TXC Cased Aluminum Evaporator Coil 5TXCB003AS Evaporator Coil: The American Standard 5TXC is an aluminum cased multi-position (upflow/downflow/horizontal) evaporator coil engineered for use with Silver-series condensers and heat pumps, sized 1.5-5 ton, compatible with R-454B refrigerant systems.

Includes licensed and insured HVAC installation by professionals, along with the Install Kit for a complete setup.

Professional Installation:

• Removal & haul-off of existing equipment
• Installation of new equipment and all included parts
• Refrigerant line connection, evacuation & charge to OEM spec
• Full system start-up, airflow check & operational testing
• Permit pulled and permit fees paid with the local jurisdiction
• Final inspection and job-site clean-up
• Performed by a licensed, insured HVAC contractor

Gas System Kit (Condenser & Coil + Furnace)

• Electrical & mounting disconnect, A/C whip, condenser pad
• Refrigerant line filter drier, locking caps, ArmaFlex insulation
• Gas line gas flex hose, gas pipe fittings (nipples, unions, shut-off, drip leg)
• Venting flue pipe & elbow set for furnace exhaust
• Drainage & PVC P-trap, full PVC fittings kit (couplings, elbows, tee, adapters)

Not Included:

This listing covers the equipment and standard installation scope above. The following items are not included unless specifically listed on your written invoice or estimate:

• Electrical panel upgrades or new breakers beyond the conventional disconnect
• Ductwork modifications, repairs, replacement, or new runs
• New refrigerant line set (existing line set is reused when in good condition)
• Condenser pad re-pour, raised platform, or hurricane tie-downs (standard composite pad is included)
• Condenser relocation to a new exterior position
• Crane or rooftop rigging for difficult equipment access
• Gas line extension, re-routing, or new gas line installation
• Condensate drain line rework beyond the immediate connection at the unit
• Thermostat upgrades (standard thermostat reuse only)
• Asbestos abatement, mold remediation, or hazardous material handling
• Carpentry, drywall, paint, or flooring repair after installation

If any of the above are needed for your home, your technician will note it on your estimate before work begins.
