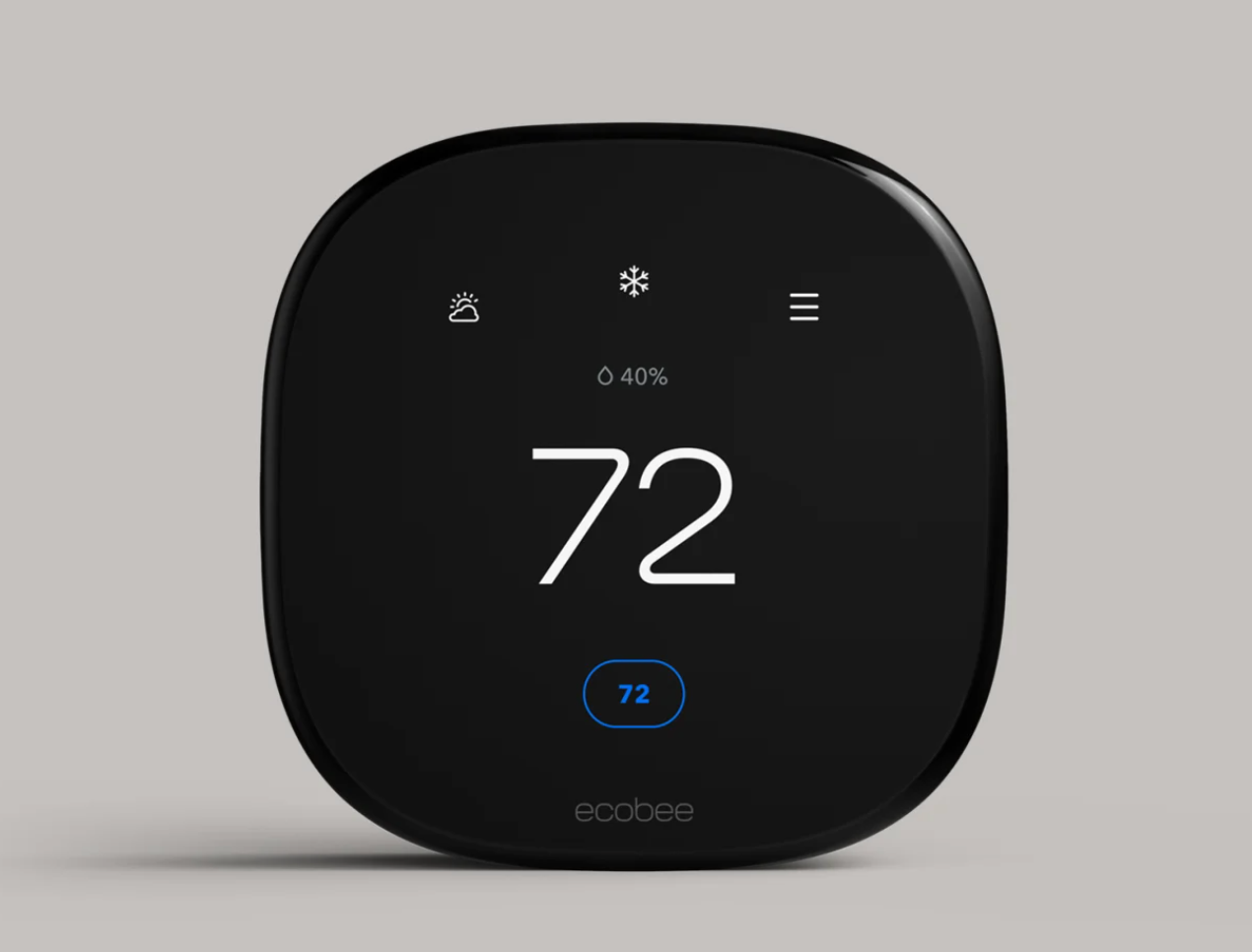

Ecobee Smart Thermostat Enhanced | Plano TX Selection

FSTPRT ECOBEE SMRT WIFI T-STAT ENHANCED BUILDER EB-STATE6LPB-01

Display
4 in. full-color LCD touchscreen

540 x 540 pixel display

Dimensions
Thermostat

Height: 103.89 mm (4.09 in.)

Width: 103.89 mm (4.09 in.)

Depth: 23.88 mm (0.94 in.)

Trim plate

Height: 143.5 mm (5.65 in.)

Width: 159.9 mm (6.29 in.)

Depth: 7.71 mm (0.3 in.)

Power Extender Kit*

Length: 62 mm (2.4 in.)

Width: 62 mm (2.4 in.)

Depth: 23 mm (0.9 in.)

*Optional for installation

Colors
Black front, white backing

Thermostat sensors
Temperature

Humidity

Occupancy (Radar)

Proximity (Radar)

Compatibility
Works with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 1 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. 1 wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV).

HVAC accessory support
Control a one-wire HVAC accessory device like a humidifier, dehumidifier, or ventilator.Note: Self-powered accessories will require an additional 24V isolation relay.

Wire Terminals
R

G

Y1

Y2

W2/OB

PEK+

C

W1

Connectivity & security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz

Bluetooth 5.0

WPA, WPA2, WPA3 encryption methods

DHCP (dynamic) or static IP addressing

168-bit SSL encryption

915MHz radio

Works with
Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more.

Bandwidth
15-20 MB/month (dependent on Alexa Voice Service usage)

Power consumption
Up to 3.5 VA

Powering methods
Wired 24VAC through terminals C and Rc.

Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.

Sustainability
Recycled packaging

Mercury-free

Arsenic-free

PVC-free

ROHS compliant

Temperature range
Desired Temperature: 45 ° to 92 °F (7 ° to 33 °C)

Display: 40 ° to 100 °F (5 ° to 37 °C)

Sensitivity: +/ ˆ’ 1 °F (+/ ˆ’ 0.5 °C)

Operating: 14 ° to 122 °F (-10 ° to 50 °C)

Humidity range
Display: 20% to 90%

Sensitivity: +/ ˆ’ 5%

Operating: 5% to 95% RH (non-condensing)

Storage
ˆ’31 ° to 113 °F ( ˆ’35 ° to 45 °C)

5% to 95% RH (non condensing)

Warranty
3-year limited warranty
