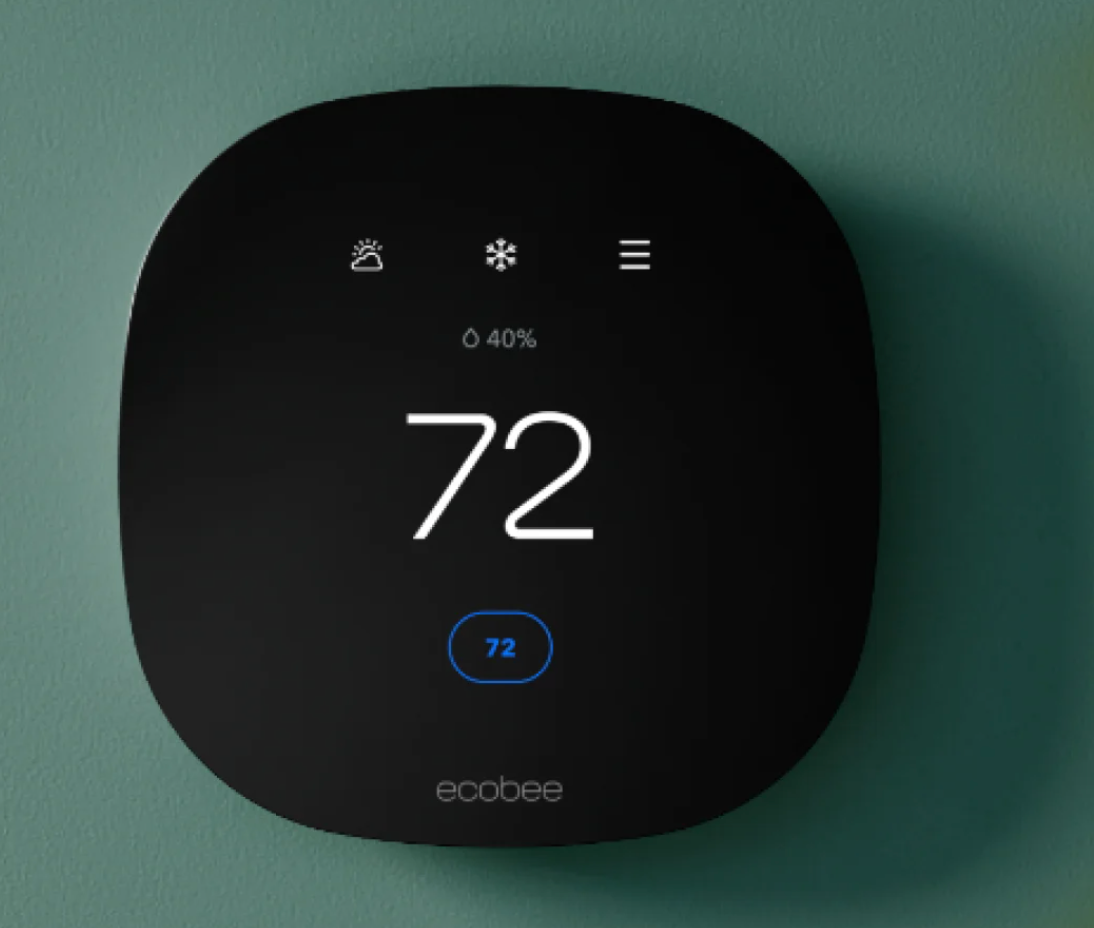

Ecobee3 Lite | Plano TX Selection

FSTPRT ECOBEE3 SMRT WIFI LITE PRO T-STAT EB-STATE3LTP-02

Dimensions
Thermostat

Length: 102.88 mm (4 in.)

Width: 102.88 mm (4 in.)

Depth: 21.4 mm (0.8 in.)

Trim plate

Height: 170 mm (6.7 in.)

Width: 170 mm (6.7 in.)

Depth: 6.25 mm (0.2 in.)

Color
Black front, white sides and back

Operating environment
Only install in a dry indoor location

Powering Methods
Wired 24VAC through terminals C and Rc.

Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.

Wire Terminals
Rc

G

Y1

Y2

O/B

Rh

C

W1 (AUX1)

W2 (AUX2)

PEK

Thermostat sensors
Temperature

Humidity

Proximity

Connectivity
Wi-Fi, 802.11 b/g/n @ 2.4 GHz

WEP 64, WEP 128, WPA and WPA2 encryption methods

DHCP (dynamic) or static IP addressing

168 bit SSL encryption

Mounting
Screws

Bandwidth
15-20 MB/month

Power consumption
Less than 3.5 VA

Sustainability
Recycled packaging

Mercury-free

Arsenic-free

PVC-free

ROHS compliant

Storage
ˆ’31 ° to 113 °F ( ˆ’35 ° to 45 °C)

5% to 95% RH (non-condensing)

Warranty
3-year warranty
